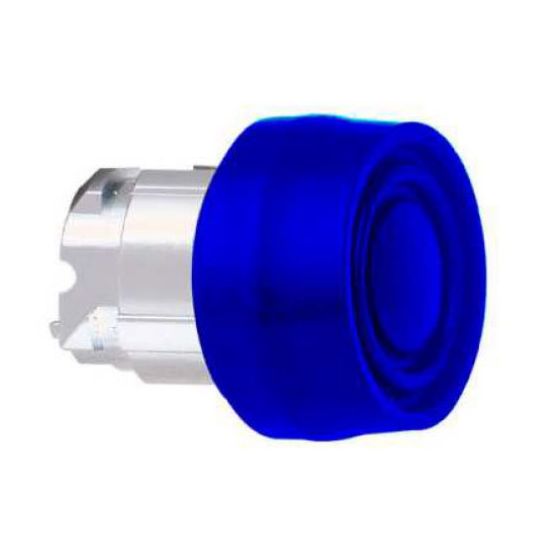

Schneider Pushbutton Actuator Only Flush Head Metal Body k Non Illuminated Momentary Blue 22mm Panel

Description

Pushbutton Actuator Only Flush Head Metal Body, Size: 22 mm, Non-Illuminated, Unmarked, Momentary Action, Flush Head, Spring Return Reset, Tightening Torque: 0.6 N/m, IP66, IP67, IP69, IP69K, Screw Terminal Clamp/Plug-In/Printed Circuit Board/Faston, Mounting Diameter: 22 mm, Panel Mount, Metal Housing, Chromium Plated Metal Bezel, Blue, -40 to 70 deg C, 30 mm Height, 30 mm Width, 33 mm Depth

Key Specifications

Barcode (EAN-13)	3389110999341
SKU	TEEZB4BP6S
Brand	Schneider
Product Type	P/B Actuators Flush

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	ZB4BP6S
Colour	Blue
Depth	33 mm
Height	30 mm
Head Type	Coloured Booted Flush
Mounting Diameter	22 mm
IP Rating	IP66/67/69/69K
Mounting Method	Panel
Operator Action	Non-Illuminated Momentary Action
Operator Profile	Unmarked
Reset Type	Spring Return
Size	22 mm
Terminal Connection	Screw Clamp/Plug-In/Printed Circuit Board/Faston
Temperature	-40 to 70 deg C
Tightening Torque	0.6 N/m
Width	30 mm
