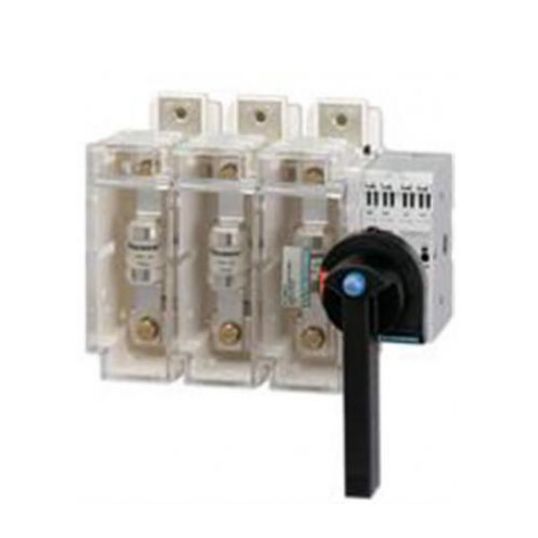

Socomec Switch-Fuse Standard Front Operated 3P 160kW AC23 AC21 BS88 Type B1 B2 B3 IP30

Description

Switch-Fuse Standard Front Operated, 400-690 Volt AC, 220-440 Volt DC, AC21 Rating: 315 Amp, AC23 Rating: 200 Amp @ 690 Volt, 315 Amp @ 400-415 Volt, 160 kW @ 400 Volt, 222 kW @ 690 Volt, 3 Pole, 3 Phase, IP30, Base Mount, Rotary Switch, For Fuse Link Size: BS88 Type B1 B2 B3, 315 Amp, 185-240 mm Flexi Cable, Mechanical Durability: 10000 Cycles, 205 mm Height, 252 mm Width, 149 mm Depth, 70 deg C

Key Specifications

Barcode (EAN-13)	9321807197092
SKU	SOCSSFBS3153P
Brand	Socomec
Range Name	FUSERBLOC SSF BS88
Product Type	Switch-Fuses

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	90-degree rotatory open-close. supplied with handle and shaft for external operation Handles and switch fuse bodies both include a padlock facility to lock off the switch for lockout tagout (LOTO) insolation 100 kA fault rating Double breaking per pole (top and bottom) for isolated fuse removal Positive break indication Option: fuse monitoring device for remote blown fuse indication
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	SSFBS3153P
AC21 Rating	315 Amp AC21
Depth	149 mm
AC23 Rating	200 Amp @ 690 Volt/315 Amp @ 400-415 Volt
For Fuse Link Size	BS88 Type B1 B2 B3
Fuse Rating	315 Amp
Height	205 mm
IP Rating	IP30
Mechanical Durability	10000 Cycles
Mounting Method	Base Plate
Number Of Poles	3 Pole
Phase	3 Phase
Switch Type	Rotary
Temperature	70 deg C
Terminal Capacity	185-240 mm Flexi Cable
Wattage	160 kW @ 400 Volt/222 kW @ 690 Volt
Voltage	400-690 Volt AC/220-440 Volt DC
Width	252 mm
