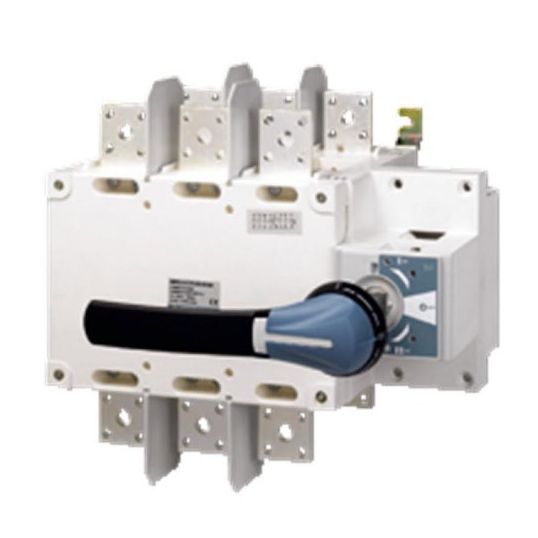

Socomec Changeover Switch External Handle 3P 630A AC21 IP65

Description

Changeover Switch External Handle, 400/415/690 Volt AC, AC21 Rating: 630 Amp @ 400/415 Volt, 500 Amp @ 690 Volt, AC23 Rating: 235 kW @ 415 Volt, 500 Amp @ 400/415 Volt, 3 Pole, 3 Phase, Switching Positions: 3, 2 x 150, 2 x 300 mm, IP65, 260 mm Height, 319 mm Width, 231 mm Depth

Key Specifications

SKU	SOCSCO6303PSTD
Brand	Socomec
Product Type	Changeover Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Standard (I-0-II) and make before break (I-I and II-II) options available covering any application requirement Three stable positions (I-O-II) not affected by voltage drops or vibrations ensuring the connected load is protected against possible network interference Easy connections thanks to copper bar connection kit accessory for 2000 to 3200 A switches enabling the use of flat or edgewise connection with top or bottom bridging Compatibility with the ergonomic IP65 S-Type Handles which features interlocking (in the ON position), padlocking, UV and chemical agent resistive material and the choice of standard blue or red/yellow colour
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	SCO6303PSTD
AC21 Rating	630 Amp AC21 @ 400-415 Volt/500 Amp AC21 @ 690 Volt
AC23 Rating	500 Amp 235 kW @ 415 Volt
Conductor Size	2 x 150, 2 x 300 sq-mm
Depth	231 mm
Height	260 mm
IP Rating	IP65
Number Of Poles	3 Pole
Phase	3 Phase
Switching Positions	3
Voltage	400-415-690 Volt AC
Width	319 mm
