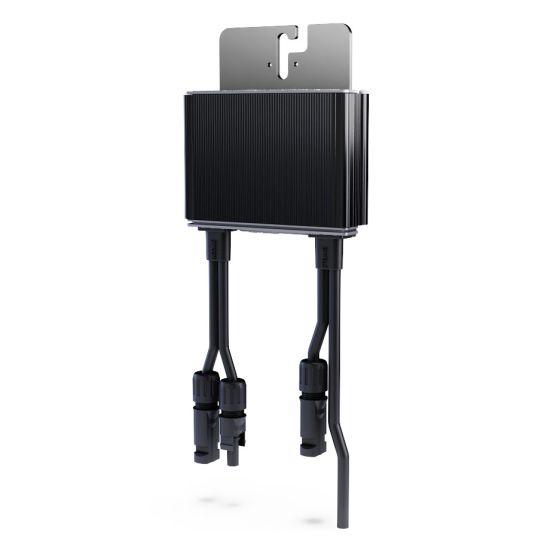

SolarEdge S-Series Power Optimizer 500W 60V 15A IP68

Description

Power Optimizer, 500 Watt DC Input, 60 Volt DC DC Input, 8-60 Volt DC DC MPPT Voltage Range, 15 Amp AC Output, 0.995 Efficiency, 0.986 European Weighted Efficiency, MC4 Connection, IP68, -40 to 85 deg C

Key Specifications

SKU	SLRS500-1GM4MRM
Brand	SolarEdge
Product Type	Power Optimizers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Superior efficiency 99.5% Module level voltage shutdown for installer and firefighter safety Detects abnormal PV connector behaviour, preventing potential safety issues Mitigates all types of module mismatch loss from manufacturing tolerance to partial shading Faster installations with simplified cable management and easy assembly using a single bolt Next generation maintenance with module safety
Standard Pack Size	20
UNSPSC Class	26111600
UOM	EA
Vendor Product	S500-1GM4MRM
AC Output Current	15 Amp
Connection Type	MC4
DC Input Power	500 Watt
DC Input Voltage	60 Volt DC
DC MPPT Voltage Range	8-60 Volt DC
Depth	155 mm
Efficiency	0.995
European Weighted Efficiency	0.986
IP Rating	IP68
Height	30 mm
Operating Temperature	-40 to 85 deg C
Relative Humidity	0-100%
Width	129 mm
