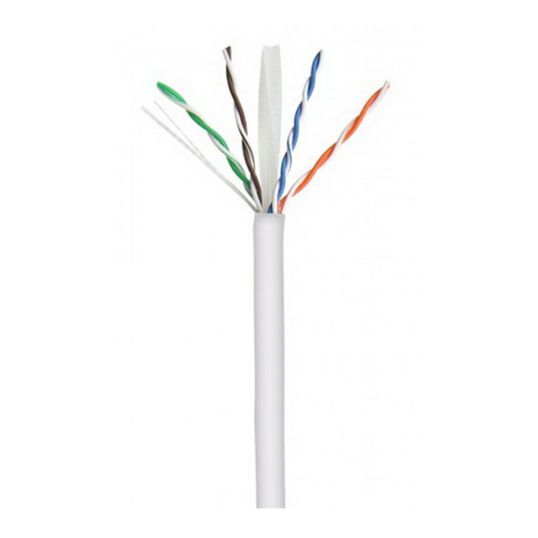

SharkRack Cat6 10G Cable 300 V 23AWG 4 Pair UnShielded LSZH Sheath Grey 305m Pull Box

Description

SHARKRACK CAT 6 LSZH cable is designed for high-speed data transmission and maximum reliability. This premium cable is Low Smoke Zero Halogen and engineered to support all CAT 6 connections over extended distances, ensuring that your network remains fast and efficient even in demanding environments.

Key Specifications

Barcode (EAN-13)	6930585204347
SKU	SHRDCWC6UL305GR
Brand	SharkRack

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Selected oxygen-free high purity steel The multi-strand conductor is made from oxygen-free copper ensuring high-speed transmission and long-term channel integrity.
Standard Pack Size	1
UNSPSC Class	26121600
UOM	EA
Vendor Product	DCWC6UL305GR
Cable Type	Cat 6
Bend Radius	4 x OD
Conductor Diameter	0.56 mm
Conductor Resistance	9.5 Ohm/100m
Conductor Size	23 AWG
Conductor Material	Bare Copper
Elongation	>=100%
Filler Material	Polyethylene Compound
Insulation Resistance	5000 mOhm/km
Insulation Material	Polyethylene Compound
Max. Pulling Force	110 N
Pair Count	4
Outside Diameter	6.1 mm +/-0.3 mm
Sheath Colour	Grey
Sheath Material	LSZH
Sheath Thickness	0.5 mm
Shielded Type	UnShielded
Stranding	Solid
Temperature	75 deg C
Voltage	300 Volt
Tensile Strength	>=9 MPa
