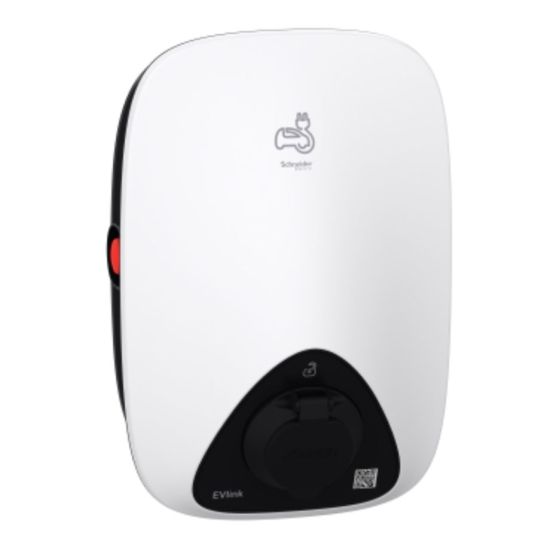

Schneider EVlink Home Charging Station 1P+N 1xT2 7.4kW 32A
Loading...
Description
Schneider EVlink Home Charging Station 1P+N 1xT2 7.4kW 32A
Key Specifications
| Barcode (EAN-13) |
3606482107311
|
|---|---|
| SKU |
SHNEVH4S07N2
|
| Brand |
Schneider
|
| Range Name |
Evlink
|
| Product Type |
Home Charging Station
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 25175000 |
| UOM | EA |
| Vendor Product | EVH4S07N2 |
| Connector Type | T2 |
| Depth | 148 mm |
| Height | 409 mm |
| IK Rating | IK10 |
| Input Current | 32 Amp |
| Input Voltage | 220-240 Volt |
| Input Frequency | 50/60 Hz |
| IP Rating | IP55 |
| Item Weight | 4.5 kg |
| Operating Temperature | -30 to 50 deg C |
| Phase | 1 Phase |
| Power Output | 7.4 kW |
| Relative Humidity | 5-95% |
| Standards | IEC 62196-2 IEC 61851-1 IEC 61851-22 IEC 62196-3 |
| Width | 282 mm |
| Storage Temperature | -40 to 80 deg C |
