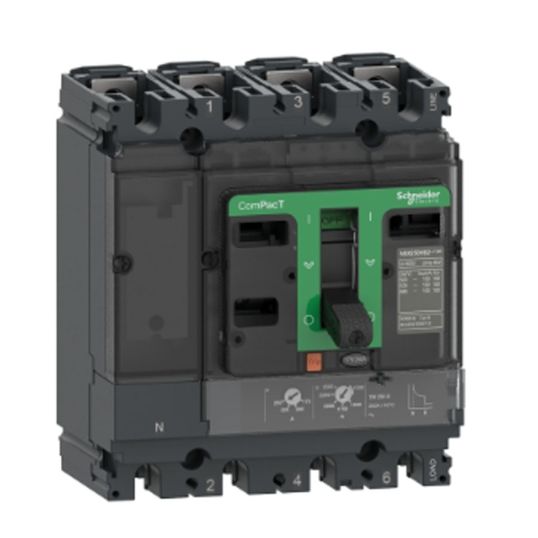

Schneider ComPacT NSX160F Circuit Breaker 36kA 4 Pole 3D 125A Thermal-Magnetic Trip Unit
Loading...
Description
Circuit Breaker, 690 Volt AC, 125 Amp, 50/60 Hz, 36 kA Interrupt Capacity, 4 Pole, Thermal-Magnetic, IP40, -25 to 70 deg C, 140mm Width x 161mm Height x 86mm Depth
Key Specifications
| SKU |
SHNC16F6TM125
|
|---|---|
| Brand |
Schneider
|
| Range Name |
Compact NSX160F
|
| Product Type |
MCCBs
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | C16F6TM125 |
| Current | 125 Amp |
| Frequency | 50/60 Hz |
| IP Rating | IP40 |
| Interrupt Capacity | 36 kA |
| Number Of Poles | 4 Pole |
| Temperature | -25 to 70 deg C |
| Trip Type | Thermal-Magnetic |
| Voltage | 690 Volt |
