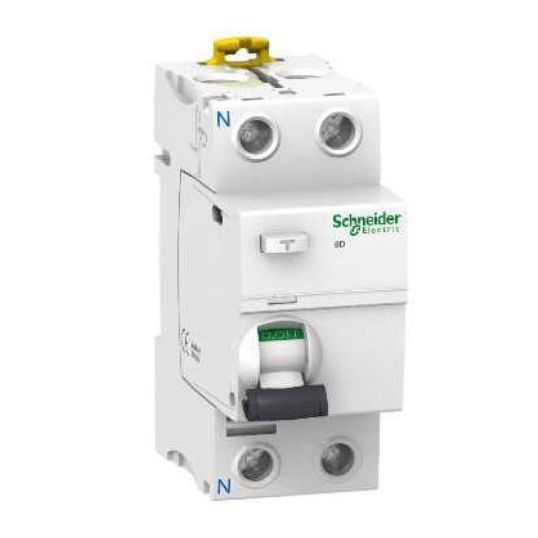

Schneider Safety Switch RCCB Instantaneous 2Pole 100A 220-240VAC 10kA 30mA 2Module 36mm DIN Rail Clip-on Mount

Description

Safety Switch RCCB Instantaneous Type, 220-240 Volt AC, 100 Amp, 50/60 Hz, 10 kA Interrupt Capacity, 30 mA Trip Sensitivity, 2 Modules, 36mm Module Width, 2 Poles, Single Terminal, IP20 Conforming to IEC 60529, IP40 Conforming to IEC 60529, DIN Rail, Clip-on, 10000 Cycles, 20000 Cycles Mechanical Durability, 1-25 mm Flexible, 1-35 mm Rigid Conductor, 3.5 N/m Top/Bottom Tightening Torque, White,-25 to 60 deg C, 91mm Height x 36mm Width x 73.5mm Depth

Key Specifications

Barcode (EAN-13)	3606480374487
SKU	SHNA9R21291
Brand	Schneider
Range Name	Acti 9 i1D
Product Type	Safety Switches RCCB

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	A9R21291
Depth	73.5 mm
Current	100 Amp
Conductor Size	1-25 sq-mm Flexible - 1-35 sq-mm Rigid
Frequency	50/60 Hz
Electrical Life	10000 Cycles
Height	91 mm
Interrupt Capacity	10 kA
IP Rating	IP20/40
Mechanical Durability	20000 Cycles
Modules	2 Module 36mm
Mounting Method	DIN Rail/Clip-on
Number Of Poles	2 Pole
Temperature	-25 to 60 deg C
Terminal Type	Single
Tightening Torque	3.5 Nm Top/Bottom
Trip Sensitivity	30 mA
Voltage	220-240 Volt
Width	36 mm
