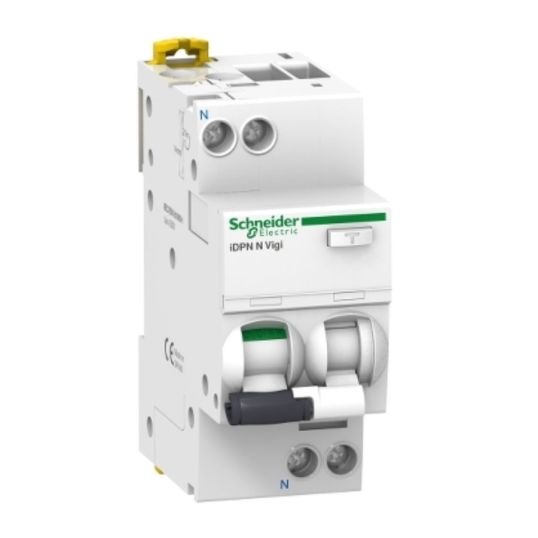

Schneider Combination RCD Circuit Breaker RCBO 1P+N 25 Amp 220-240V AC 6 kA 2Module 36mm DIN Rail

Description

Combination RCD Circuit Breaker RCBO, 25 Amp, 220-240 Volt AC, 50 Hz, Interrupt Capacity: 6 kA, Trip Sensitivity: 30 mA, Number of Poles: 1P + N, Number of Modules: 2, 36mm Module Width, Trip Characteristic: C Curve, 1-10 mm Flexible, 1-16 mm Rigid Terminal Connection, IP20, IP40, DIN Rail, White,-25 to 60 deg C, 85mm Height, 36mm Width, 73mm Depth

Key Specifications

Barcode (EAN-13)	3606480472091
SKU	SHNA9D32625
Brand	Schneider
Range Name	Acti 9
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	A9D32625
Colour	White
Current	25 Amp
Height	85mm
Depth	73mm
Modules	2 Module 36mm
Frequency	50 Hz
Interrupt Capacity	6 kA
Mounting Method	DIN Rail
IP Rating	IP20/40
Number Of Poles	1 Pole
Temperature	-25 to 60 deg C
Trip Characteristic	C Curve
Terminal Connection	1-10 sq-mm Flexible/ 1-16 sq-mm Rigid
Trip Sensitivity	30 mA
Voltage	220-240 Volt
Width	36mm
