Schneider Residual Current Device 3Amp 100/415Volt AC DIN Rail Mount

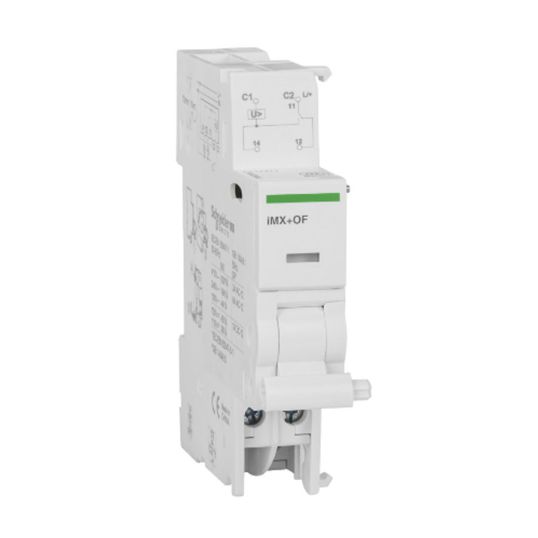

This Acti9 iMX+OF electrical tripping auxiliary for is a shunt trip release device with open/close auxiliary contact. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. This device includes an open/close contact OF to indicated the position of the associated device. Emergency stoppage by normally open pushbutton. The product trips the associated device when it is powered on by emergency pushbutton. The width in 9 mm pitches is 2. The Ue rated operational voltage is 100 Volt AC to 415 Volt AC or 110 Volt DC to 130 Volt DC. The operating frequency is 50/60 Hz. The I.e. rated operational current is 6A under 24 Volt DC, 2A under 48 Volt DC, 1.5A under 60 Volt DC, 1A under 130 Volt DC. The I.e. rated operational current is 6A under 24 Volt AC to 240 Volt AC, 3A under 415 Volt AC. There is a mechanical state indicator light, red on the front face. It can be mounted on a DIN rail for modular installation. The product colour is white (RAL9003). The operating temperature is -25 deg C to + 50 deg C. The storage temperature is -40 deg C to + 85 deg C. This product complies with IEC/EN 60947-5-1 standards.
