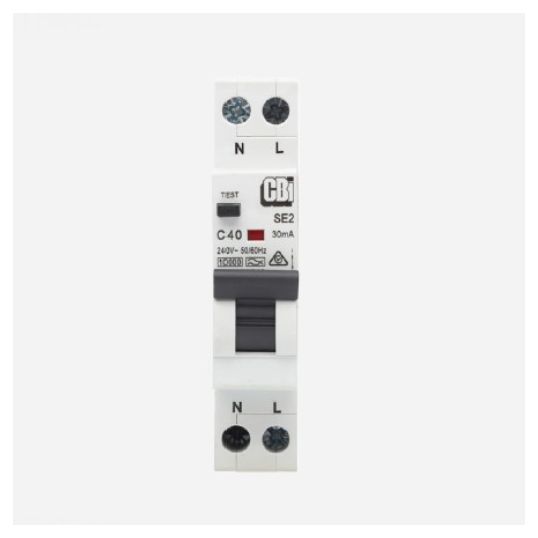

SFR RCBO Circuit Breaker 1P+N 40 Amp 240V AC 10 kA DIN Mount

Description

RCBO Circuit Breaker Type A, 40 Amp, 240 Volt AC, 50/60 Hz, Interrupt Capacity: 10 kA, Trip Sensitivity: 30 mA, Number of Poles: 1P + N, Trip Characteristic: C Curve, 10-16 mm Terminal Connection, IP20, DIN, Black Handle,-5 to 55 deg C, 85.5mm Height, 17.8mm Width, 73.96mm Depth

Key Specifications

SKU	SFRSE2C40
Brand	SFR
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Provides overload, short circuit and earth leakage protection Provides protection in the event of direct/indirect contact by the human body Provides comprehensive protection to residential and commercial distribution systems Provides protection against insulation failure Can be mounted on pin type busbars Handle is sealable and padlockable (with padlock attachment) Positive contact indication
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	SFRSE2C40
Colour	Black Handle
Current	40 Amp
Depth	73.96 mm
Height	85.5 mm
Frequency	50/60 Hz
IP Rating	IP20
Interrupt Capacity	10 kA
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Terminal Connection	10-16 sq-mm
Temperature	-5 to 55 deg C
Trip Characteristic	C Curve
Voltage	240 Volt
Trip Sensitivity	30 mA
Width	17.8 mm
