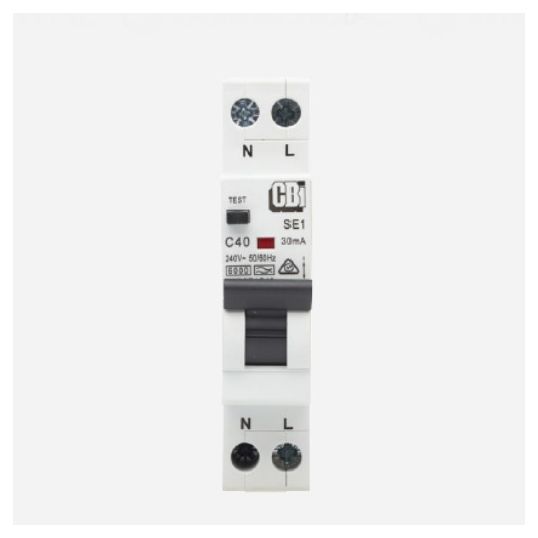

SFR RCBO Circuit Breaker 1P+N 40 Amp 240V AC 6 kA DIN

Description

Combination RCD Circuit Breaker RCBO Type A, 240 Volt, 40 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, C Curve, 1 + N Pole, 25 sq-mm Terminal, IP20, DIN Rail Mounting, Black Handle, 5 to 55 deg C, 85.5 mm Height, 17.8 mm Width, 73.96 mm Depth

Key Specifications

SKU	SFRSE1C40
Brand	SFR
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Provides overload, short circuit and earth leakage protection Provides protection in the event of direct/indirect contact by the human body Provides comprehensive protection to residential and commercial distribution systems Provides protection against insulation failure Can be mounted on fork type bus bars Handle is sealable and pad lockable (with attachment) Complies with latest ESV requirements for RCBOs Positive contact indication
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	SFRSE1C40
Colour	Black Handle
Current	40 Amp
Depth	73.96 mm
Height	85.5 mm
Frequency	50/60 Hz
IP Rating	IP20
Interrupt Capacity	6 kA
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Terminal Connection	25 sq-mm
Temperature	5 to 55 deg C
Trip Characteristic	C Curve
Voltage	240 Volt
Trip Sensitivity	30 mA
Width	17.8 mm
