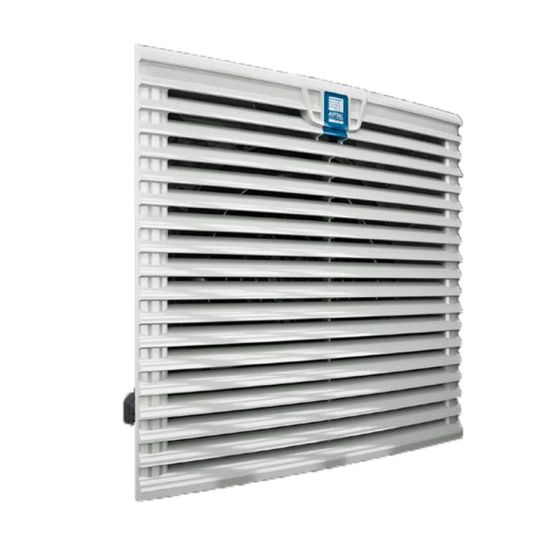

Rittal Filter Fan 105 m3/hr 230 Volt AC 50 Hz 204mm Height x 204mm Width x 90mm Depth Light Grey

Description

Fan-and-filter units with diagonal fan technology have superior pressure stability and ensure a more constant air throughput. The diagonal direction of outflow ensures more even heat dissipation from the enclosure.

Key Specifications

Barcode (EAN-13)	4028177651814
SKU	RIA3239100
Brand	Rittal
Product Type	Exhaust fans

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121300
UOM	EA
Vendor Product	3239100
Air Flow Cubic Meters per Hour	105 cu-m/h
Colour	Light Grey
Current	0.12/0.11 Amp
Cut-Out Size	117 mm Height x 117 mm Width
Frequency	50/60 Hz
Height	204 mm
IP Rating	IP54/55/56
Min. Install Depth	90 mm
Motor Type	AC
Mounting Method	Wall
Noise Level	46/49 dB
Phase	1 Phase
Temperature	-15 to 55 deg C
Voltage	230 Volt
Width	204 mm
