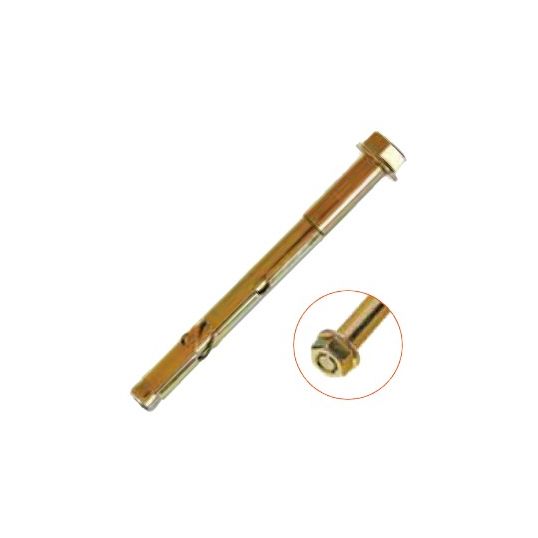

Ramset Masonry Sleeve Anchor Hex Nut Head Medium Duty 10x76mm Carbon Steel Zinc Plated

Description

Sleeve Anchor Hex Nut Head Medium Duty, 10 mm Diameter, M8, Hex Nut Head, 76 mm Length, 65 mm Drill Depth, 10 mm Drill Diameter, 45 mm Embedment Depth, 30 mm Maximum Fixture Thickness, 12 mm Fixture Hole Diameter, 70 mm Minimum Edge Distance, 135 mm Minimum Spacing, 5.9 kN Tensile Strength, 35 Nm Torque Rating, Carbon Steel, Zinc Plated, For Use With Concrete, Solid Brick, Solid Block, Hollow Brick, Hollow Block, Hollow Slab, 50

Key Specifications

Barcode (EAN-13)	9310535312495
SKU	RAMDP10075
Brand	Ramset
Range Name	DynaBolt Plus

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The DynaBolt Plus patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load and provide improved security The DynaBolt Plus is a fully assembled through fixture anchor. Therefore, assembly, marking out and re-positioning of fixtures is eliminated making installation fast and easy
Standard Pack Size	50
UNSPSC Class	31162100
UOM	EA
Vendor Product	RAMDP10075
Diameter	10 mm
Drill Diameter	10 mm
Drill Depth	65 mm
Embedment Depth	45 mm
Finish	Zinc Plated
Fixture Hole Diameter	12 mm
For Use With	Concrete/Solid Brick/Solid Block/Hollow Brick/Hollow Block
Head Type	Hex Nut
Maximum Fixture Thickness	30 mm
Material	Carbon Steel
Minimum Spacing	135 mm
Minimum Edge Distance	70 mm
Pack Size	50 Pack
Product Type	simple
Tensile Strength	5.9 kN
Thread Size	M8
Torque Rating	35 Nm
