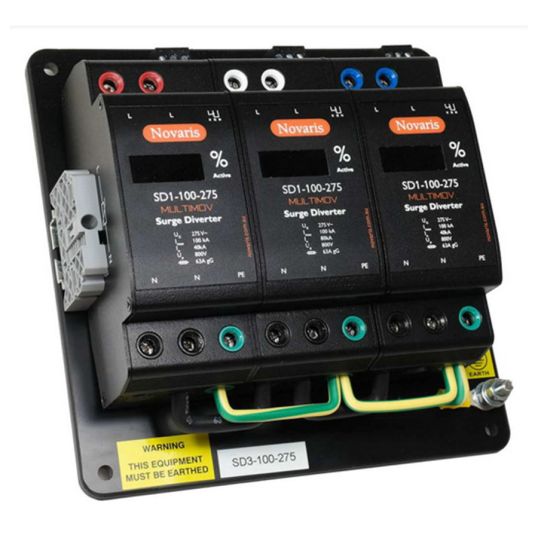

Novaris Surge Diverter MULTIMOV 3 Phase 100kA 275VAC L-L L-N Mode

$Novaris\Novaris_SD3-100-275.jpg$

Description

Surge Diverter, Maximum Discharge(L-N): 100 kA, Nominal Discharge(L-N): 40 kA, Nominal: 230 Volt AC, Maximum Continuous(L-N): 275 Volt AC, Panel Mounting, IP20, Aluminium, Powder Coated Black,-40 to 70 deg C, 80mm Height, 200mm Width

Key Specifications

SKU	NOISD3-100-275
Brand	Novaris

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	All Mode Protection Redundant Segments Active Monitoring Safe Metal Enclosure
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	SD3-100-275
Colour	Powder Coated Black
Current	Max Discharge(L-N): 100 kA/Nominal Discharge(L-N): 40 kA
IP Rating	IP20
Height	80mm
Material	Aluminium
Mounting Method	Panel
Product Type	Surge Diverter
Temperature	-40 to 70 deg C
Voltage	Nominal: 230 Volt AC/Maximum Continuous(L-N): 275 Volt AC
Width	200mm
