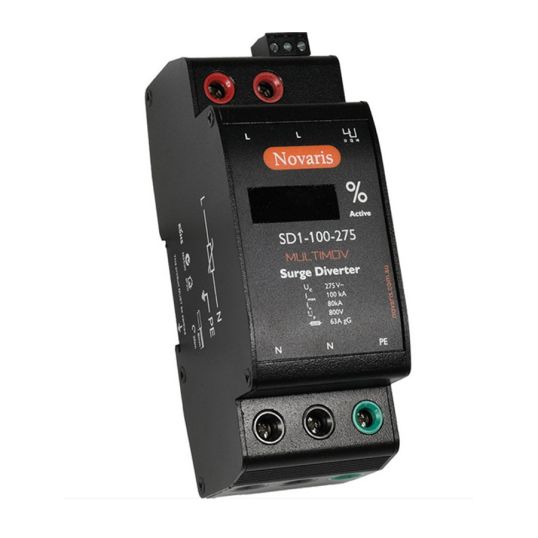

Novaris Surge Diverter MULTIMOV 1 Phase 100kA 275VAC L-N Mode

chevron-left
loader
Loading...

Description

chevron-down
Surge Diverter, Maximum Discharge(L-N): 100 kA, Nominal Discharge(L-N): 40 kA, Nominal: 230 Volt AC, Maximum Continuous(L-N): 275 Volt AC, TS35 DIN Rail Mounting, IP20, Aluminium, Powder Coated Black,-40 to 70 deg C, 69mm Height, 54mm Width

Key Specifications

chevron-down
SKU
NOISD1-100-275
Brand
Novaris

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • All Mode Protection
  • Redundant Segments
  • Active Monitoring
  • Safe Metal Enclosure
Standard Pack Size 1
UNSPSC Class 39121600
UOM EA
Vendor Product SD1-100-275
Colour Powder Coated Black
Current Max Discharge(L-N): 100 kA/Nominal Discharge(L-N): 40 kA
Height 69mm
IP Rating IP20
Material Aluminium
Mounting Method TS 35 DIN Rail
Temperature -40 to 70 deg C
Product Type simple
Width 54mm
Voltage Nominal: 230 Volt AC/Maximum Continuous(L-N): 275 Volt AC
