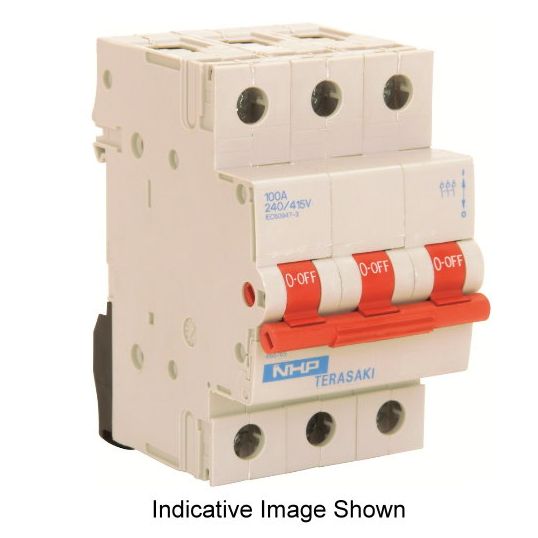

NHP Mains Isolating Switch 3P 100A 415V DIN Rail Mount
Loading...
Description
Mains Isolating Switch, 415 Volt, 100 Amp, 50/60 Hz, 3 Pole, 3 Module 54 mm, 6-50 sq-mm Rigid, IP40, DIN Rail Mounting, White, 5 to 40 deg C, 86 mm Height x 56mm Width x 80 mm Depth
Key Specifications
| Barcode (EAN-13) |
5413656911609
|
|---|---|
| SKU |
NHPMOD6MS3100
|
| Brand |
NHP
|
| Range Name |
MOD6
|
| Product Type |
Mains Switches
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121100 |
| UOM | EA |
| Vendor Product | MOD6MS3100 |
| Colour | White |
| Conductor Size | 6-50 sq-mm Rigid |
| Dimensions | 86 mm Height x 56mm Width x 80 mm Depth |
| Current | 100 Amp |
| Frequency | 50/60 Hz |
| IP Rating | IP40 |
| Mounting Method | DIN Rail |
| Number Of Poles | 3 Pole |
| Modules | 3 Module 54 mm |
| Temperature | 5 to 40 deg C |
| Voltage | 415 Volt |
