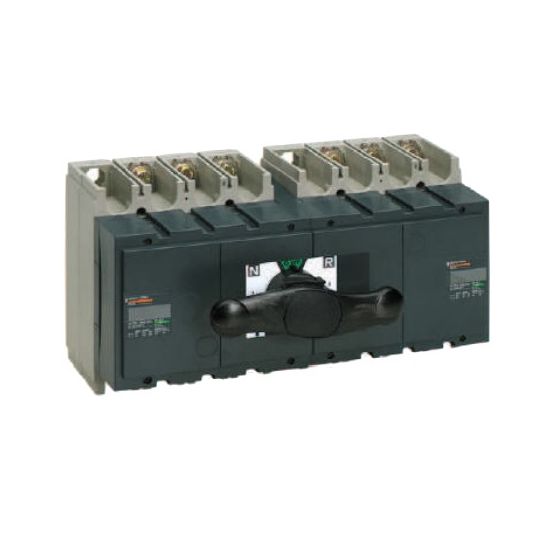

Schneider Changeover Switch Front Operated 4P 45 kW AC23 DIN Rail Mount
Loading...
Description
Changeover Switch Front Operated, 690/750 Volt AC, 250/750 Volt DC, AC23 Rating: 100 Amp, 45 kW @ 400 Volt, 100 Amp, 50/60 Hz, 4 Pole, DIN Rail Mount, IP40, -25 to 70 deg C, 136 mm Height, 295 mm Width, 131 mm Depth
Key Specifications
| Barcode (EAN-13) |
3303430311416
|
|---|---|
| SKU |
MEG31141
|
| Brand |
Schneider
|
| Range Name |
Interpact
|
| Product Type |
Changeover Switches
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | 31141 |
| AC23 Rating | 100 Amp 45 kW @ 400 Volt |
| Current | 100 Amp |
| Depth | 131 mm |
| Frequency | 50/60 Hz |
| Height | 136 mm |
| IP Rating | IP40 |
| Mounting Method | DIN Rail |
| Number Of Poles | 4 Pole |
| Temperature | -25 to 70 deg C |
| Voltage | 690-750 Volt AC/250-750 Volt DC |
| Width | 295 mm |
