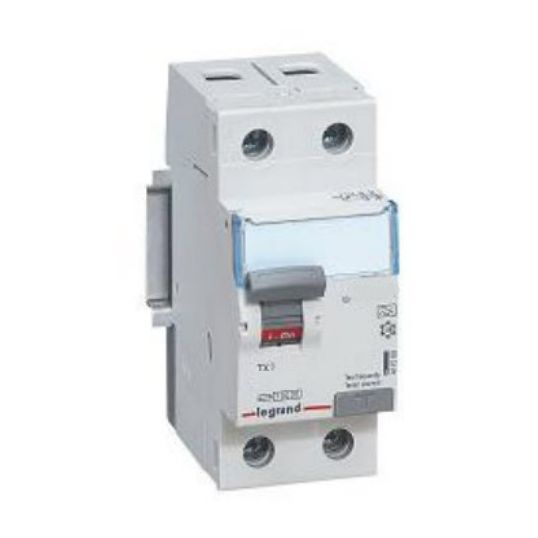

Legrand Safety Switch RCCB Type A 2Pole 25A 230VAC 100mA 2Module 35.6mm DIN 35 Rail Mount

Description

Safety Switch RCCB Type A, 230 Volt AC, 25 Amp, 50 Hz, 100 mA Trip Sensitivity, 2 Modules, 35.6mm Module Width, 2 Poles, Screw Terminal, IP20/IP40, DIN 35 Rail, 10000 Cycles, 20000 Cycles Mechanical Durability, 0.75-35 mm Flexible/0.75-50 mm Rigid Conductor, 1.2/3.5 N/m Min, 2.5 N/m Recommended Tightening Torque, Polyamide and P.B.T Housing,-25 deg C, 83mm Height x 35.6mm Width x 77.85mm Depth

Key Specifications

Barcode (EAN-13)	3414970352781
SKU	LEG411564
Brand	Legrand
Range Name	Lexic TX3
Product Type	Safety Switches RCCB

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Wire guide flap Rising cage clamp terminals Bistable clamp
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	411564
Conductor Size	0.75-35 sq-mm Flexible - 0.75-50 sq-mm Rigid
Current	25 Amp
Depth	77.85 mm
Height	83 mm
Electrical Life	10000 Cycles
Frequency	50 Hz
IP Rating	IP20/40
Mechanical Durability	20000 Cycles
Modules	2 Module 35.6mm
Mounting Method	DIN Rail
Number Of Poles	2 Pole
Terminal Type	Screw
Tightening Torque	1.2/3.5 Nm min - 2.5 Nm Recommended
Temperature	-25 deg C
Width	35.6 mm
Trip Sensitivity	100 mA
Voltage	230 Volt
