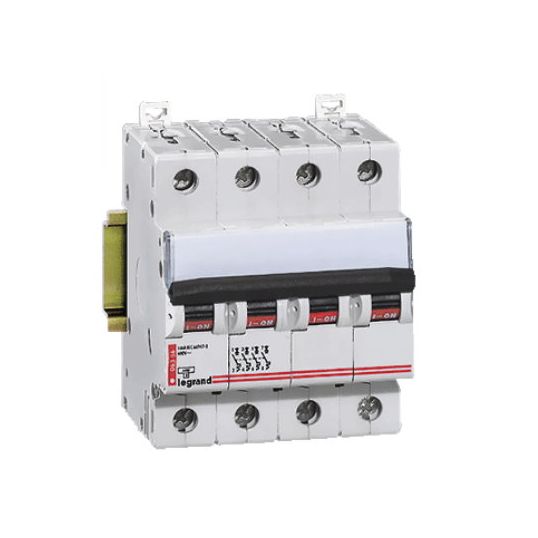

Legrand Miniature Circuit Breaker C Curve 25Amp 6 kA 4Pole 4Module 70.8mm DIN Rail Mount

Description

Miniature Circuit Breaker C Curve C Curve, 400 Volt, 25 Amp, 50/60 Hz, Interrupt Capacity: 6 kA, Number of Modules: 4, 70.8mm Module Width, Number of Poles: 4, 3, Trip Characteristic: C Curve, 2 Position Handle Actuator, 2 N/m Mini, 3 N/m Maxi Tightening Torque, 1.5-35 mm Flexible/1.5-25 mm Rigid Cable Terminal Capacity, IP20, IP40, DIN Rail, Polyester Housing,-25 to 70 deg C, 83mm Height x 70.8mm Width x 77.8mm Depth

Key Specifications

Barcode (EAN-13)	3414970389916
SKU	LEG403564
Brand	Legrand
Range Name	Lexic TX3
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The new TX3 range ensures safe installation and operation for maximum protection of people and property For ease of installation, wiring and maintenance, the new TX3 range has a number of features which help save time at each stage of a project Wire guide flap avoids connection errors for an increased safety level, by preventing insertion of the wire behind the terminal Rising cage clamp terminals the shape of the screws and terminals ensures a high quality, durable connection of the wires and limits contact impedance, temperature rise and heat loss
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	403564
Actuator Type	2 Position Handle
Current	25 Amp
Depth	77.8mm
Frequency	50/60 Hz
Height	83mm
Interrupt Capacity	6 kA
IP Rating	IP20/40
Modules	4 Module 70.8mm
Mounting Method	DIN Rail
Number Of Poles	4 Pole
Phase	3 Phase
Temperature	-25 to 70 deg C
Tightening Torque	2 N/m Mini/3 N/m Maxi
Voltage	400 Volt
Width	70.8mm
