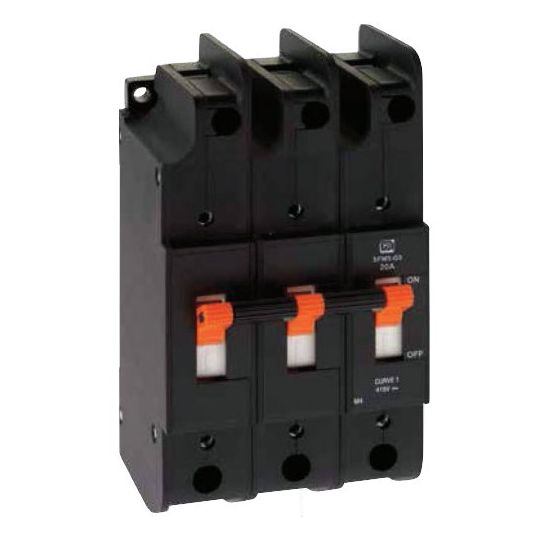

Heinelec Miniature Circuit Breaker 3 Pole 20 Amp 6 kA 3 Module 77.4mm Clip Tray Surface Mount

Description

Miniature Circuit Breaker, 240 Volt AC, 20 Amp, 50/60 Hz, Interrupt Capacity: 6 kA, Number of Modules: 3, 77.4mm Module Width, Number of Poles: 3, Tunnel Terminal, IP2X, Clip Tray, Surface,-40 to 85 deg C, 149mm Height x 77.4mm Width x 71.8mm Width

Key Specifications

SKU	HEISFM3-G3-20-2
Brand	Heinelec
Range Name	SFM Series
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	AC circuit breaker Hydrauilic magnetic technology 100% rating capacity independent of ambient temperture IP2X finger proof line and load box (tunnel) type terminals can accommodate copper cables up to 50 sq-mm Available in various currents and time delays Precision tripping characterstics Reset immediately after over load
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	SFM3-G3-20-2
Current	20 Amp
Frequency	50/60 Hz
Height	149mm
Interrupt Capacity	6 kA
IP Rating	IP2X
Mounting Method	Clip Tray/Surface
Number Of Poles	3 Pole
Temperature	-40 to 85 deg C
Terminal Type	Tunnel
Voltage	240 Volt
Width	77.4mm
