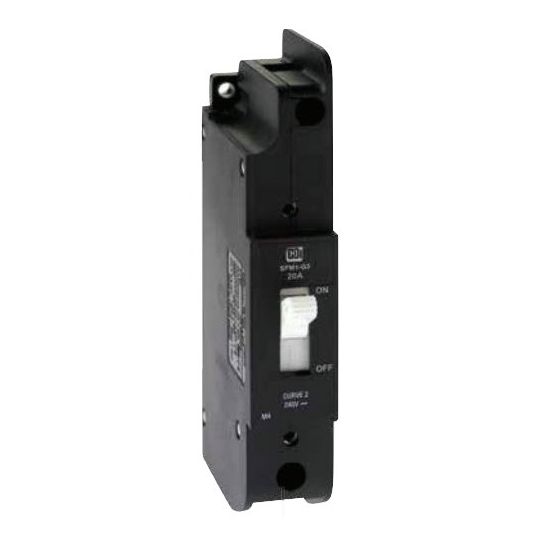

Heinelec Circuit Breaker Non Automatic 1Module 6kA 125V 1P 25.8mm Surface Clip Tray/Front Screws

Description

Miniature Circuit Breaker Non Automatic, 125 Volt, 100 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 1 Modules, 25.8mm Module Width, 1 Poles, 4, 2.5 N/m Tightening Torque, Tunnel, Screw Terminal, IP2X, 6000 Cycles, 50 mm Cable Size, Surface, Clip Tray/Front Screws,-10 to 60 deg C, 149mm Height x 25.8mm Width x 85.6mm Depth

Key Specifications

SKU	HEISFM1-G0-100
Brand	Heinelec
Range Name	SFM Series
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Available in single, double, triple pole and four pole units Precision circuit breaker utilizing hydraulic magnetic technology results in accurate temperature independent tripping Clear positive identification for ON/OFF (I/O) provided Shunt trip provides for remote tripping Auxiliary switch provides for remote indication
Standard Pack Size	12
UNSPSC Class	39121600
UOM	EA
Vendor Product	SFM1-G0-100
Cable Size	50 sq-mm
Current	100 Amp
Depth	85.6 mm
Electrical Life	6000 Cycles
Frequency	50/60 Hz
Height	149 mm
Interrupt Capacity	6 kA
IP Rating	IP2X
Modules	1 Module 25.8mm
Mounting Method	Surface/Clip Tray/Front Screws
Number Of Poles	1 Pole
Temperature	-10 to 60 deg C
Terminal Type	Tunnel/Screw
Tightening Torque	4/2.5 Nm
Voltage	125 Volt
Width	25.8 mm
