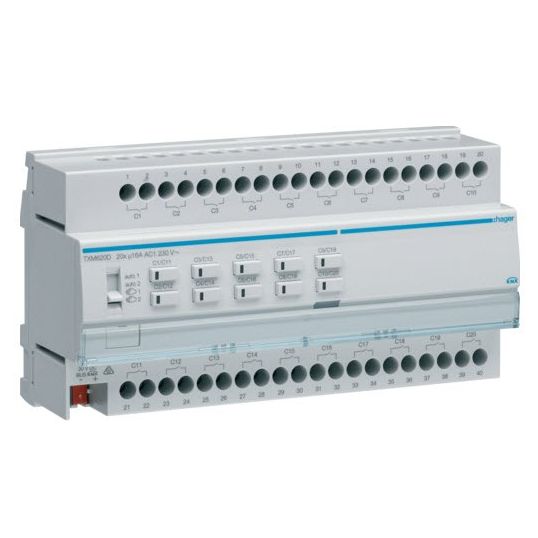

Hager Output Module KNX DIN Mount 20-Fold 16A C-Load Adapted/NE Light Grey

Description

Output Module, System Type: KNX, 230 Volt, 16 Amp, Power Rating: 2300 Watt, Frequency: 50/60 Hz, Number of Outputs: 20, Number of Modules: 10, Conductor Size: 0.5-6 mm, Connection Type: With Screw, Mounting Method: DIN Rail, IP20, Light Grey, 90mm Height, Temperature:-5 to 45 deg C

Key Specifications

Barcode (EAN-13)	3250616048782
SKU	HAGTXM620D
Brand	Hager
Product Type	Output Units

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Suitable to switch different external conductors With positioning function for blind and lamella position With safety functions e.g. for wind, rain, alarm With sun shade function For switching, e.g. of 20 independent loads or activation of 10 drives
Standard Pack Size	1
UNSPSC Class	39121800
UOM	EA
Vendor Product	TXM620D
Colour	Light Grey
Connection Type	With Screw
Current	16 Amp
Conductor Size	0.5-6 mm
Frequency	50/60 Hz
Height	90 mm
IP Rating	IP20
Modules	10 Modules
Mounting Method	DIN Rail
Power Rating	2300 Watt
System Type	KNX
Temperature	-5 to 45 deg C
Voltage	230 Volt
