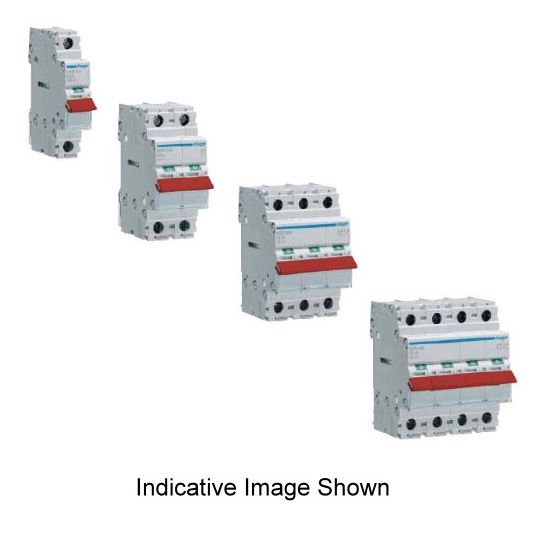

Hager Mains Isolating Switch 3P 100A 400V 3NO Screw DIN Rail Mount

Description

Mains Isolating Switch, 400 Volt, 100 Amp, 50/60 Hz, 16.5 Watt, 3 Pole, 3 Module 52.5 mm, 3 Normally Opened Configuration, 35 sq-mm Flexible/50 sq-mm Rigid, Screw Connection, IP20, DIN Rail Mounting, Red Toggle, 20 to 50 deg C, 83 mm Height x 68 mm Depth

Key Specifications

Barcode (EAN-13)	3250615510471
SKU	HAGSBR390
Brand	Hager
Product Type	Mains Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For use as a switch isolator in all types of circuits
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	SBR390
Contact Configuration	3 Normally Opened
Colour	Red Toggle
Conductor Size	35 sq-mm Flexible/50 sq-mm Rigid
Dimensions	83 mm Height x 68 mm Depth
Connection Type	Screw
Current	100 Amp
Frequency	50/60 Hz
IP Rating	IP20
Mounting Method	DIN Rail
Number Of Poles	3 Pole
Modules	3 Module 52.5 mm
Power Rating	16.5 Watt
Temperature	20 to 50 deg C
Voltage	400 Volt
