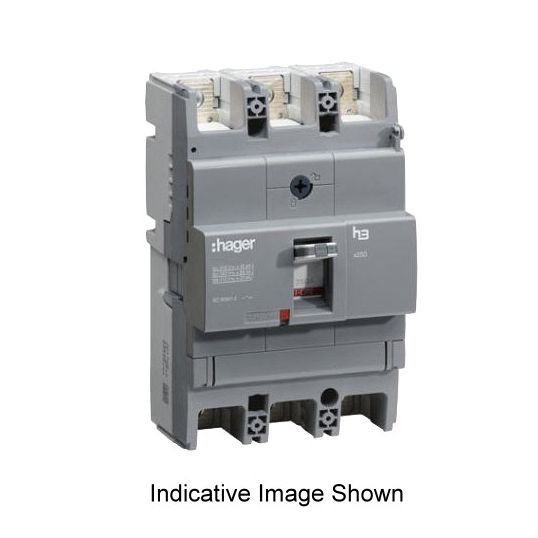

Hager Moulded Case Circuit Breaker Thermal Magnetic 3 Pole 25 kA 80 Amp

Description

Moulded Case Circuit Breaker, 220/415 Volt, 80 Amp, 50/60 Hz, Interrupt Capacity: 25 kA, Number of Poles: 3, Thermal Setting: Adjustable Thermal 0.63 to 0.8-1 x In, Magnetic Setting: Fixed Magnetic > 10 x In, Thermal Magnetic Trip, Screw Terminal, IP4X, 50 deg C, 130mm Height x 75mm Width x 68mm Depth

Key Specifications

Barcode (EAN-13)	3250613130763
SKU	HAGHHA080U
Brand	Hager
Range Name	H3 x160
Product Type	MCCBs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	HHA080U
Current	80 Amp
Depth	68mm
Frequency	50/60 Hz
Height	130mm
Interrupt Capacity	25 kA
Magnetic Setting	Fixed Magnetic > 10 x In
Number Of Poles	3 Pole
IP Rating	IP4X
Temperature	50 deg C
Terminal Type	Screw
Thermal Setting	Adjustable Thermal 0.63 to 0.8-1 x In
Trip Type	Thermal Magnetic
Voltage	220-415 Volt
Width	75mm
