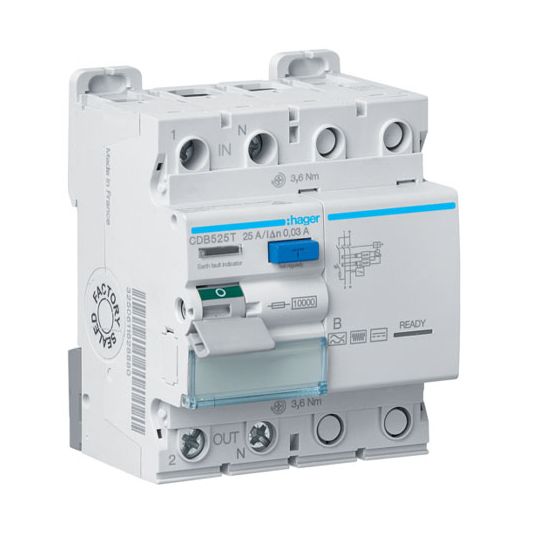

Hager Residual Current Circuit Breaker 230-240 VAC 50 Hz IP20
Loading...
Description
Residual Current Circuit Breaker, 230-240 Volt AC, 25 Amp, 50 Hz, 10 kA Interrupt Capacity, 2 Pole, Screw Terminal, IP20, 10000 Cycles Electrical Life, 20000 Cycles Mechanical Durability, 1/16 mm Flexible, 1/25 mm, 85mm Height x 72mm Width x 70mm Depth
Key Specifications
| Barcode (EAN-13) |
3250611628880
|
|---|---|
| SKU |
HAGCDB525T
|
| Brand |
Hager
|
| Product Type |
Residual Current Circuit Breakers
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | CDB525T |
| Conductor Size | 1/16 sq-mm Flexible - 1/25 sq-mm |
| Current | 25 Amp |
| Depth | 70 mm |
| Height | 85 mm |
| Electrical Life | 10000 Cycles |
| Frequency | 50 Hz |
| Interrupt Capacity | 10 kA |
| IP Rating | IP20 |
| Mechanical Durability | 20000 Cycles |
| Number Of Poles | 2 Pole |
| Terminal Type | Screw |
| Width | 72 mm |
| Voltage | 230-240 Volt |
