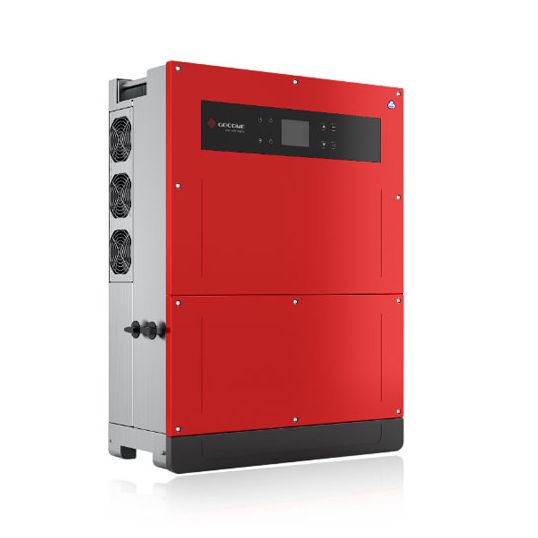

Goodwe MT Series Solar Inverter 3 MPPT Three Phase 50kW RS485/Wi-Fi/PLC

Description

Solar Inverter, 3 Phase, 65000 Watt Input, 1100 Volt DC Input, 620 Volt DC Nominal, 200-1000 Volt DC MPPT Voltage Range, 200 Volt DC Start-up, 33 Amp/22 Amp Max. Input, 4 MPPTs, 50 kW Output, 55000 VA; 57500 VA at 415 Volt AC Max. Apparent, 400 Volt, Default 3L+N+PE , 3L+PE AC Nominal, 50/60 Hz, 80 Amp Output, 1, Adjustable From 0.8 Leading to 0.8 Lagging Power Factor, <3% Harmonic Distortion, 98.7% Efficiency, Transformerless, <= 4000 mtr Max. Altitude, RS485/Wi-Fi/PLC, LCD or Wi-Fi + App Display, Fan Cooling, IP65, -30 to 60 deg C, 0-100% Relative Humidity, 586 mm Width x 788 mm Height x 264 mm Depth, 59 kg Weight

Key Specifications

SKU	GDWGW50KN-MT
Brand	Goodwe
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	GW50KN-MT
AC Max. Apparent Power	55000-57500 VA @ 415 Volt AC
AC Nominal Voltage	400 Volt-3L+N+PE
AC Operating Frequency	50/60 Hz
AC Output Current	80 Amp
AC Output Power	50 kW
Communication Port	RS485/Wi-Fi/PLC
Cooling Method	Fan
DC Input Power	65000 Watt
DC Input Voltage	1100 Volt
DC Max. Input Current	33-22 Amp
DC MPPT Voltage Range	200-1000 Volt
DC Nominal Voltage	620 Volt
DC Start-up Voltage	200 Volt
Depth	264 mm
Display Type	LCD or Wi-Fi + App
Efficiency	98.70%
European Weighted Efficiency	98.30%
IP Rating	IP65
Height	788 mm
Number of MPPTs	4
Operating Temperature	-30 to 60 deg C
Phase	3 Phase
Power Factor	1/Adjustable from 0.8 Leading to 0.8 Lagging
Relative Humidity	0-100%
Topology	Transformerless
Width	586 mm
