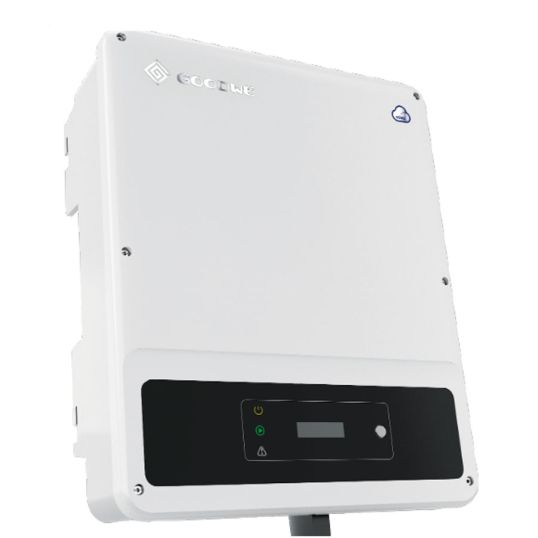

Goodwe DNS Solar Inverter 2 MPPT 1 Phase 5000W 13/13A

Description

Solar Inverter, 1 Phase Phase, 6667 Watt DC Input, 600 Volt DC Input, 360 Volt DC Nominal, 80-550 Volt DC MPPT Voltage Range, 80 Volt DC Start-up, 13 Amp DC Max. Input, 2 MPPTs, 5 kW AC Output, 5000 VA AC Max. Apparent, 220-230 Volt, 50/60 Hz, 22.8 Amp AC Output, 1 (Adjustable 0.8 Leading-0.8 Lagging) Power Factor, <3% Total Harmonic Distortion, 0.978 Efficiency, 0.975 European Weighted Efficiency, Transformerless, <=4000 mtr Max. Altitude, RS485/Wi-Fi/4G/2G/LAN, LED/LCD/Wi-Fi+APP/Bluetooth+APP Display, Natural Convection Cooling, IP65, -25 to 60 deg C

Key Specifications

SKU	GDWGW5000T-DS
Brand	Goodwe
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	GW5000T-DS
AC Operating Frequency	50/60 Hz
AC Nominal Voltage	220-230 Volt
AC Max. Apparent Power	5000 VA
AC Output Current	22.8 Amp
AC Output Power	5 kW
Communication Port	RS485/Wi-Fi/4G/2G/LAN
DC Input Power	6667 Watt
DC Input Voltage	600 Volt
DC Max. Input Current	13 Amp
Cooling Method	Natural Convection
DC MPPT Voltage Range	80-550 Volt
DC Nominal Voltage	360 Volt
DC Start-up Voltage	80 Volt
Display Type	LED/LCD/Wi-Fi+APP/Bluetooth+APP
Depth	147 mm
European Weighted Efficiency	0.975
IP Rating	IP65
Height	433 mm
Efficiency	0.978
Max. Operating Altitude	<=4000 mtr
Number of MPPTs	2
Operating Temperature	-25 to 60 deg C
Phase	1 Phase
Power Factor	1 (Adjustable 0.8 Leading-0.8 Lagging)
Relative Humidity	0-100%
Total Harmonic Distortion	<3%
Topology	Transformerless
Width	354 mm
