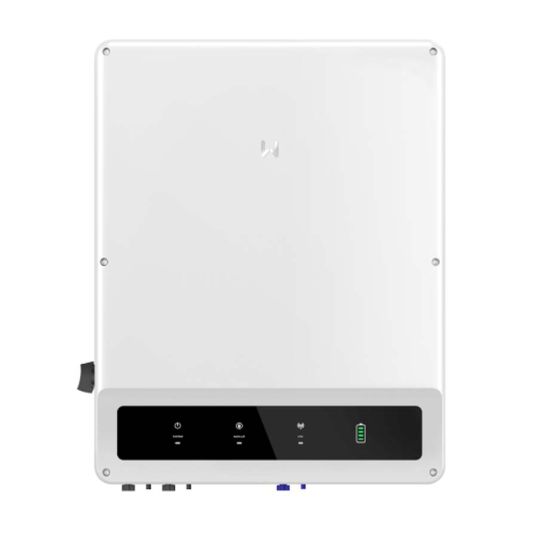

Goodwe ET Series Hybrid Inverter Three Phase 29.9kW 3 MPPT 10 Years

Description

Hybrid Inverter, 3 Phase, 45000 Watt DC Input, 1000 Volt DC Input, 620 Volt DC Nominal, 200-850 Volt DC MPPT Voltage Range, 200 Volt DC Start-up, 30 Amp/MPPT DC Max. Input, 3 MPPTs, 29.9 kW AC Output, 29900 VA AC Max. Apparent, 380/400 Volt, 50/60 Hz, 43.3 Amp AC Output, 1 (Adjustable From 0.8 Leading to 0.8 Lagging) Power Factor, <3% Total Harmonic Distortion, 98% Efficiency, 97.5% European Weighted Efficiency, 99.9% MPPT Efficiency, Non-Isolated, 4000 mtr Max. Altitude, GHX6-55P DC Switch, Battery: 500 Volt Lithium-Ion, RS485/CAN/WiFi/4G, Smart Fan Cooling Cooling, <60 dB, Wall Mounting, IP66,-35 to 60 deg C, 0-95% Relative Humidity, 660mm Height, 520mm Width, 220mm Depth, 54 kg

Key Specifications

SKU	GDWGW29.9K-ET
Brand	Goodwe
Product Type	Hybrid Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Smart Control & Monitoring Superb Safety & Reliability Friendly & thoughtful design Flexible & Adaptable Applications
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	GW29.9K-ET
AC Max. Apparent Power	29900 VA
AC Nominal Voltage	380-400 Volt
AC Operating Frequency	50/60 Hz
AC Output Current	43.3 Amp
AC Output Power	29.9 kW
Battery	500 Volt Lithium-Ion
Communication Port	RS485/CAN/WiFi/4G
Cooling Method	Smart Fan Cooling
DC Input Power	45000 Watt
DC Input Voltage	1000 Volt
DC Max. Input Current	30 Amp
DC MPPT Voltage Range	200-850 Volt
DC Nominal Voltage	620 Volt
DC Start-up Voltage	200 Volt
DC Switch	GHX6-55P
Depth	220 mm
Efficiency	98%
European Weighted Efficiency	97.50%
IP Rating	IP66
Height	660 mm
Max. Operating Altitude	4000 mtr
Mounting Method	Wall
MPPT Efficiency	99.90%
Noise Level	<60 dB
Number of MPPTs	3
Operating Temperature	-35 to 60 deg C
Phase	3 Phase
Power Factor	1 (Adjustable From 0.8 Leading to 0.8 Lagging)
Relative Humidity	0-95%
Topology	Non-Isolated
Total Harmonic Distortion	<3%
Width	520 mm
