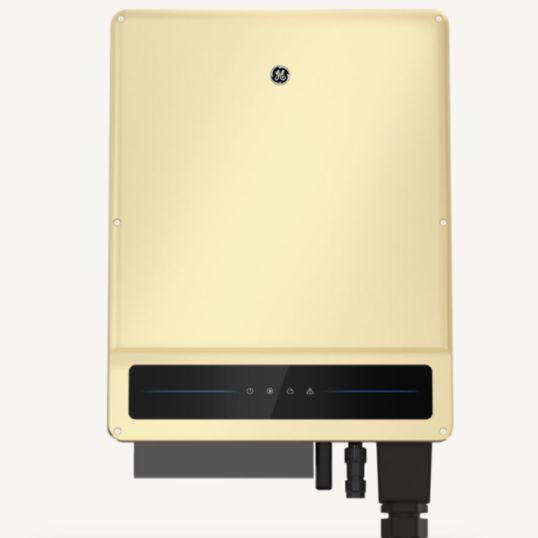

GE Solar Inverter 50000 Watt 5 MPPT 3 PH 400 Volt 3L/N/PE or 3L/PE 80 Amp IP65

Description

Solar Inverter/3 Phase/75000 Watt DC Input/1100 Volt DC Input/180-1100 Volt DC Operating Voltage/600 Volt DC Nominal/200-950 Volt DC MPPT Voltage Range/180 Volt DC Start-up/26 Amp DC Max. Input/5 MPPTs/50000 Watt AC Output/55000 VA AC Max. Apparent/400 Volt/3L/N/PE or 3L/PE/50/60 Hz/80 Amp AC Output/-1 Power Factor/<3% Total Harmonic Distortion/98.3% Efficiency/98% European Weighted Efficiency/Transformerless/3000 mtr Max. Altitude/RS485/WiFi/PLC/Fan Cooling Cooling/IP65/-30 to 60 deg C/0-100% Relative Humidity/660mm Height/520mm Width/220mm Depth/55 kg

Key Specifications

SKU	GDWGEP50-10
Brand	GE
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	GEP50-10
AC Max. Apparent Power	55000 VA
AC Nominal Voltage	400 Volt
AC Operating Frequency	50/60 Hz
AC Output Current	80 Amp
AC Output Power	50000 Watt
Communication Port	RS485/WiFi/PLC
Cooling Method	Fan Cooling
DC Input Power	75000 Watt
DC Input Voltage	1100 Volt
DC Max. Input Current	26 Amp
DC MPPT Voltage Range	200-950 Volt
DC Operating Voltage	180-1100 Volt
DC Nominal Voltage	600 Volt
DC Start-up Voltage	180 Volt
Depth	220 mm
Efficiency	98.30%
European Weighted Efficiency	98%
IP Rating	IP65
Height	660 mm
Max. Operating Altitude	3000 mtr
Number of MPPTs	5
Operating Temperature	-30 to 60 deg C
Phase	3 Phase
Power Factor	-1
Relative Humidity	0-100%
Topology	Transformerless
Total Harmonic Distortion	<3%
Width	520 mm
