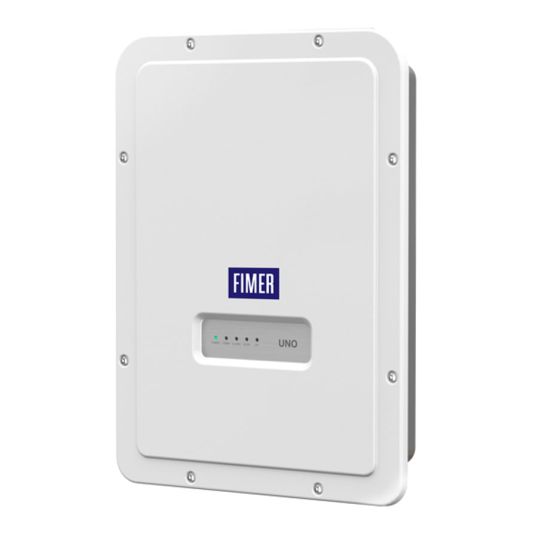

Fimer SPA Solar Inverter 2 MPPT 1 Phase 5000W 30.5/19-11.5A

Description

Solar Inverter, 1 Phase, 5150 Watt DC Input, 600 Volt DC Input, 0.7 x Vstart - 580 Volt (min 90 Volt) DC Operating, 170-480 Volt DC MPPT Voltage Range, 200 Volt (120-350 Volt) DC Start-up, 8 Watt DC Feed-in, 30.5/19-11.5 Amp DC Max. Input, 2 MPPTs, 5000 Watt AC Output, 5000 VA AC Max. Apparent, 50/60 Hz AC Operating, 22 Amp AC Output, >0.995, +/-0.1-1 Over/Under Excited Power Factor, <3% Harmonic Distortion, 97.4% Efficiency, 97% European Weighted Efficiency, Transformerless, 2000 mtr Max. Altitude, 25 Amp/600 Volt DC Switch, Wireless Communication Port, Natural Cooling, PV Quick Fit Connector/Female Connector from Panel Connection, Wall Bracket Mounting, IP65, -25 to 60 deg C (Derating Above 45 deg C), 0-100% Condensing Relative Humidity, 553 mm Height, 418 mm Width, 175 mm Depth, 15 kg, IEC/EN 62109-1, IEC/EN 62109-2, AS/NZS 4777.2, EN 61000-6-1

Key Specifications

SKU	FIM3P25990S100A
Brand	Fimer SPA
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	3P25990S100A
AC Max. Apparent Power	5000 VA
AC Operating Frequency	50/60 Hz
AC Output Current	22 Amp
AC Output Power	5 kW
Communication Port	Wireless
Connection Type	PV Quick Fit Connector/Female Connector from Panel
Cooling Method	Natural
DC Input Power	5150 Watt
DC Input Voltage	600 Volt
DC Max. Input Current	30.5-19-11.5 Amp
DC MPPT Voltage Range	170-480 Volt
DC Operating Voltage	0.7 x Vstart - 580 Volt (min 90 Volt)
DC Start-up Voltage	200 Volt (120-350 Volt)
DC Switch	25 Amp/600 Volt
Depth	175 mm
Efficiency	97.40%
European Weighted Efficiency	97%
IP Rating	IP65
Height	553 mm
Max. Operating Altitude	2000 mtr
Mounting Method	Wall
Number of MPPTs	2
Operating Temperature	-25 to 60 deg C (Derating Above 45 deg C)
Phase	1 Phase
Power Factor	>0.995 +/-0.1-1 Over/Under Excited
Relative Humidity	0-100% Condensing
Topology	Transformerless
Total Harmonic Distortion	<3%
Width	418 mm
