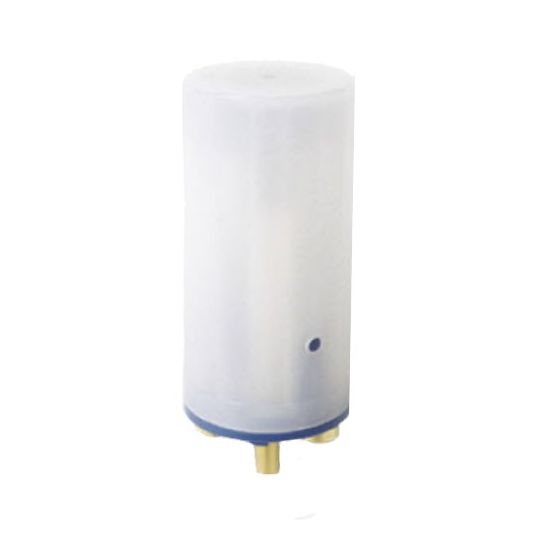

Eye Daylight Switch Photoelectric Light Sensitive 3A 240V White

Description

The PBM2403 (L) is a PE cell that utilises the D2 base system. This photoconductive cadmium sulphide (CdS) cell is designed for reliable long -term performance. The thermal relay is normally closed for fail safe operation. This unit is widely used in low voltage street lights and post top units where an easily replaceable PE Cell is required.

Key Specifications

Barcode (EAN-13)	9323952135998
SKU	EYEPBM2403(L)
Brand	Eye
Product Type	Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Some daylight switches used in Australia are designed for the D2 style base. The D2 - like the NEMA type - relies on pin connectors which insert and twist to lock in place. A difference is that the D2 base is wired inside a fixture
Standard Pack Size	6
UNSPSC Class	39122200
UOM	EA
Vendor Product	101020
Colour	White
Current	3 Amp
Diameter	26 mm
Frequency	50 Hz
Height	63 mm
Intensity	31.5-125 lux/<400 lux
Material	Melamine Phenol Resin
Please Note	D2 Base
Voltage	240 Volt
