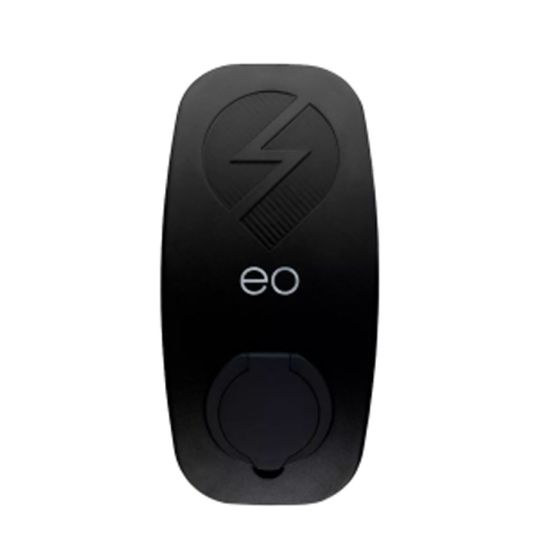

Home Charger - EO Basic (22kW) - socket (NON-SMART)
Loading...
Description
Home Charger - EO Basic (22kW) - socket (NON-SMART)
Key Specifications
| SKU |
EOCEO004-DCL
|
|---|---|
| Brand |
EO
|
| Range Name |
Home/Business
|
| Product Type |
EV Charger
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 25175000 |
| UOM | EA |
| Vendor Product | EO004-DCL |
| Certifications | CE Marked; EMC Directive 2014; 30; EU; IEC 61851-1; IEC 61851-22; IEC 62196-2 |
| Connector Type | Type 2 |
| Depth | 16 mm |
| Height | 36 mm |
| IK Rating | IK08 |
| Input Current | 32 Amp |
| Input Voltage | 230-400 Volt |
| Input Frequency | 50 Hz |
| IP Rating | IP66/54 |
| Item Weight | 6 kg |
| Operating Temperature | -25 to 50 deg C |
| Phase | 3 Phase |
| Power Output | 22 kW |
| Relative Humidity | 5-95% |
| Standards | CE Marked EMC Directive 2014/30/EU IEC 61851-1 IEC 61851-22 IEC 62196-2 |
| Width | 17 mm |
| Storage Temperature | -25 to 85 deg C |
