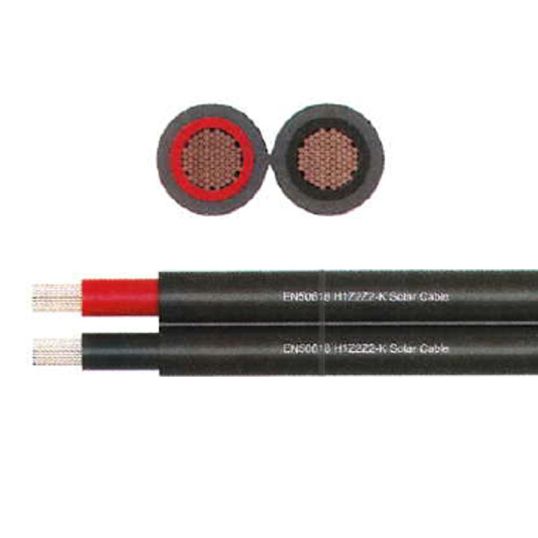

Elcon Cables 4mm DC Twin Figure 8 Solar Cable 0.9/1.8kV Cross Linked Black 100mtr

Description

Solar Cable DC, 0.9-1.8 kV DC/0.6-1 kV AC, 4 mm, 4.6 mm x 9.4 mm Overall Diameter, 100 mtr Length, 18.4 mm Bend Radius, 5.09 mOhm/m Conductor Resistance, Tinned Copper Conductor, Red/Black Core, Electron Beam Cross Linked Compound Insulation, Electron Beam Cross Linked Compound Sheath, Black Sheath, 120 deg C

Key Specifications

SKU	ELNENF8TUV4B100M
Brand	Elcon Cables
Product Type	Solar Cable DC

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Excellent flexibility, Ezi tear webbing Flame retardant, 120 deg C low smoke zero halogen UV stabilised TUV Rhineland approved Metre marked Compact design Compact design
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	ENF8TUV4B100M
Bend Radius	18.4 mm
Conductor Resistance	5.09 mOhm/m
Conductor Material	Tinned Copper
Core Colours	Black/Red
Conductor Size	4 mm
Insulation Material	Electron Beam Cross Linked Compound
Overall Diameter	4.6 mm x 9.4 mm
Sheath Colour	Black
Sheath Material	Electron Beam Cross Linked Compound
Temperature	120 deg C
Voltage	0.9-1.8 kV DC/0.6-1 kV AC
