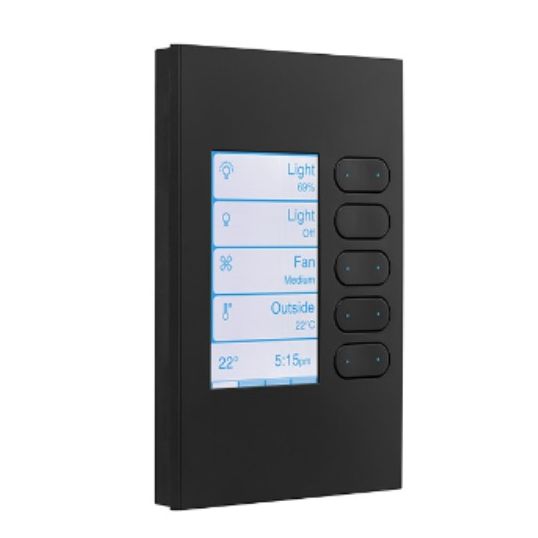

Clipsal C-Bus Saturn Zen Series Enhanced DLT Wall Switch 5 Key A Series Zen Black
Loading...
Description
Enhanced DLT Wall Switch, 15-36 Volt DC, 32 mA, Control Type: 5 x Push-Button Dual-Action, Number of Wires: 2, Number of Outputs: 16 in 4 Page Option, 5 in 1 Page Option, Connection Type: Flying Leads, Mounting Method: Wall, IP20, Material: Plastic, Zen Black, Temperature: 5 to 45 deg C, Dimensions: 83mm Width x 123mm Height x 35mm Depth, 2.8 in Colour TFT Display
Key Specifications
| SKU |
CLIR5045EDLBZB
|
|---|---|
| Brand |
Clipsal
|
| Range Name |
Saturn Zen Series
|
| Product Type |
Switch Mechanisms
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121800 |
| UOM | EA |
| Vendor Product | R5045EDLB-ZB |
| Colour | Black |
| Connection Type | Flying Leads |
| Control Type | 5 x Push-Button Dual-Action |
| Current | 32 mA |
| Dimensions | 83 mm Width x 123 mm Height x 35 mm Depth |
| IP Rating | IP20 |
| Mounting Method | Wall |
| Material | Plastic |
| Number of Wires | 2 Wires |
| Please Note | 2.8 in Colour TFT Display |
| Voltage | 15-36 Volt DC |
| Temperature | 5 to 45 deg C |
