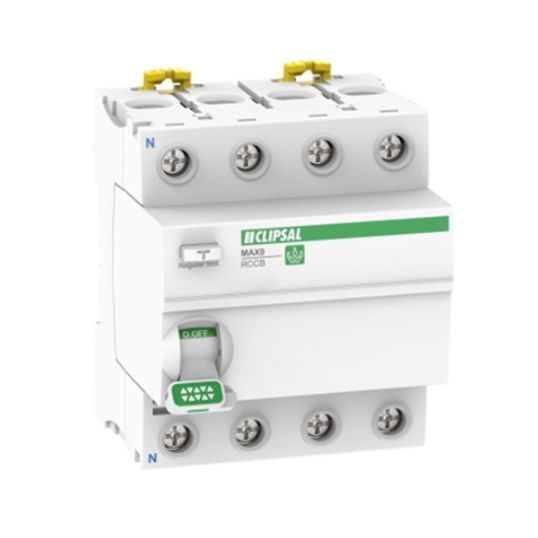

Clipsal MAX9 Residual Current Circuit Breaker 4 Pole 63A 30mA A Type
Loading...
Description
Residual Current Circuit Breaker, 415 Volt, 63 Amp, 50 Hz, 630 Amp Interrupt Capacity, 30 mA Trip Sensitivity, 4 Pole, Tunnel Type Terminals (Top or Bottom) Terminal, Terminal Connection, IP20, DIN Rail Mounting, White, 25 to 70 deg C, 85 mm Height, 72 mm Width, 75 mm Depth
Key Specifications
| Barcode (EAN-13) |
9311554813314
|
|---|---|
| SKU |
CLIMX9RC463
|
| Brand |
Clipsal
|
| Range Name |
Max9
|
| Product Type |
Residual Current Circuit Breakers
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | MX9RC463 |
| Colour | White |
| Current | 63 Amp |
| Connection Type | Terminal |
| Height | 85 mm |
| Depth | 75 mm |
| Frequency | 50 Hz |
| Interrupt Capacity | 630 Amp |
| Mounting Method | DIN Rail |
| IP Rating | IP20 |
| Number Of Poles | 4 Pole |
| Temperature | 25 to 70 deg C |
| Terminal Connection | Tunnel Type Terminals (Top or Bottom) |
| Trip Sensitivity | 30 mA |
| Voltage | 415 Volt |
| Width | 72 mm |
