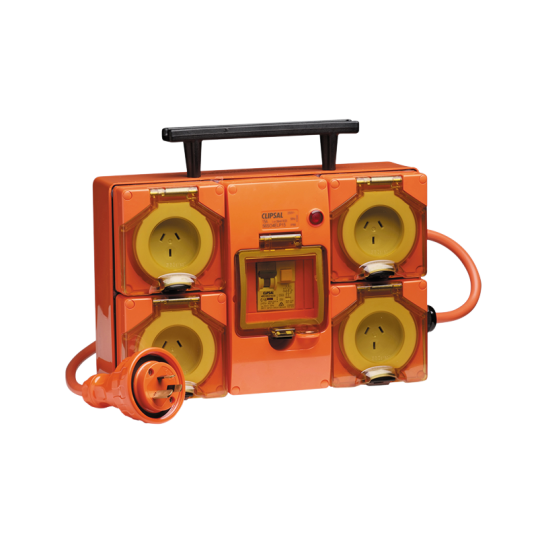

Clipsal 56 Series Switch Socket Outlet Portable RCD Protected 4 Gang 1Ph 15A 250V 3 Pin Flat Resistant Orange IP56
Loading...
Description
Switch Socket Outlet Portable RCD Protected 4 Gang, 1 Phase, 15 Amp, 250 Volt AC, 50 Hz, 6 Gang, 3 Pin Flat, Screw, Terminal Capacity: 1.5 to 6 mm, IP56, Polycarbonate, Chemical Resistant Orange, 243 mm Height, 294 mm Width, 105 mm Depth, -25 to 75 deg C, Auto Switching
Key Specifications
| Barcode (EAN-13) |
9311554203627
|
|---|---|
| SKU |
CLI56SO4ELP15RO
|
| Brand |
Clipsal
|
| Range Name |
56 Series
|
| Product Type |
Socket Outlets RCD Protected
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | 56SO4ELP15-RO |
| Colour | Chemical Resistant Orange |
| Connection Type | Screw |
| Current | 15 Amp |
| Depth | 105 mm |
| Frequency | 50 Hz |
| Height | 243 mm |
| IP Rating | IP56 |
| Phase | 1 Phase |
| Pin Configuration | 3 Pin Flat |
| Please Note | Auto Switching |
| Temperature | -25 to 75 deg C |
| Terminal Capacity | 1.5-6 mm |
| Voltage | 250 Volt |
| Width | 294 mm |
