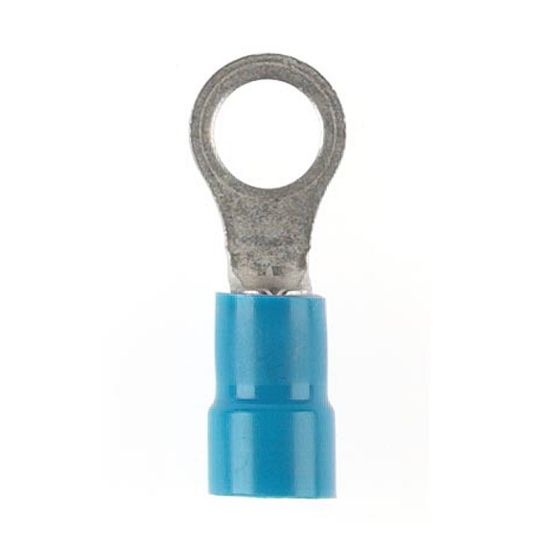

Cabac Ring Terminal Insulated Single Grip 1-2.6mm M5 Stud Blue

Description

Ring Terminal Insulated Single Grip, 1-2.6 mm, M5 Stud, Ring Terminal, 600 Volt, 32 Amp, 5-6 mm Wire Strip Length, 200 Mpa Tensile Strength, 35% Ductile Rating, 1.738 micro-Ohm cm Resistivity, 99.5% IACS Conductivity, Copper Body, Annealed Copper, Nylon Insulation, Blue Insulation, Tin Electroplated, 105 deg C, 100 Pack

Key Specifications

Barcode (EAN-13)	9318674527497
SKU	CAART2-5
Brand	Cabac
Range Name	Pre-Insulated Terminals
Product Type	Forked & Ring Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Unique funnel entry that speeds wire termination - increasing reliability High quality product - meets international standards Funnel entry terminals allow easy conductor entry, minimising substandard crimps Long term electrical integrity Full technical back up including QA
Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	RT2-5
Conductive Material	Annealed Copper
Body Material	Copper
Conductor Size	1-2.6mm
Conductivity	99.5% IACS
Current Rating	32 Amp
Ductile Rating	35%
Finish	Tin Electroplated
Insulation Colour	Blue
Insulation Material	Nylon
Pack Size	100 Pack
Resistivity	1.738 micro-Ohm/cm
Stud Size	M5
Temperature	105 deg C
Tensile Strength	200 MPa
Terminal Type	Ring
Voltage Rating	600 Volt
Wire Strip Length	5-6 mm
