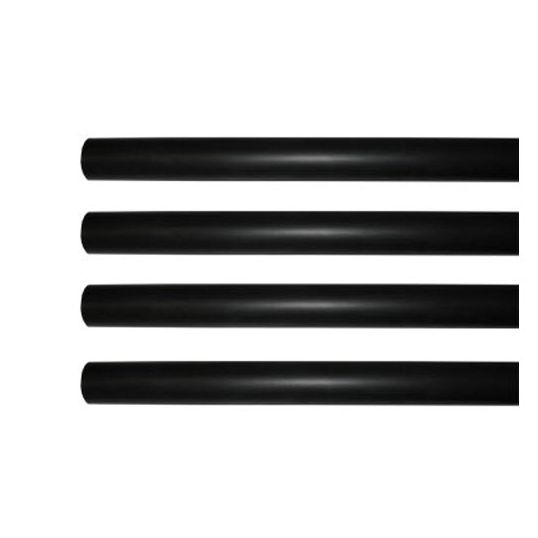

Alco HSMW Heatshrink Tubing Medium Wall Adhesive Lined 85-25mm 1.2M Black
Loading...
Description
Heatshrink Tubing, Medium Wall, Adhesive Lined, Shrink Diameter From 85 mm to 25 mm, Shrink Ratio: 50%, Wall Thickness Recovered: 3.3 mm, 1.2 mtr Length, Tensile Strength: 15.5 MPa, Shrink Temperature: 110 Deg C, Elongation: 580%, Flammability Rating: UL, VW-1, Black, -55 to 125 Deg C
Key Specifications
| Barcode (EAN-13) |
9328587006422
|
|---|---|
| SKU |
ALCHSMWGL85/25L
|
| Brand |
Alco
|
| Range Name |
Type HSMWGL
|
| Product Type |
Heatshrink Tubing
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121700 |
| UOM | EA |
| Vendor Product | HSMWGL85/25L |
| Colour | Black |
| Flammability Rating | UL/VW-1 |
| Elongation | 580% |
| Lining Type | Adhesive Lined |
| Shrink Diameter From | 85 mm |
| Shrink Diameter To | 25 mm |
| Tensile Strength | 15.5 MPa |
| Temperature | -55 to 125 Deg C |
| Shrink Ratio | 50% |
| Wall Type | Medium |
| Shrink Temperature | 110 Deg C |
| Wall Thickness Recovered | 3.3 mm |
