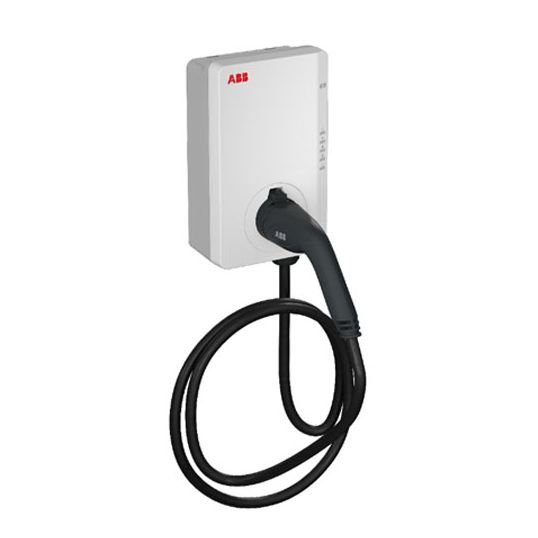

ABB AC Charger Electric Vehicle 22kW Type 2 Socket TAC-W22-T-R-C-0
Loading...
Description
AC Charger Electric Vehicle, 380 - 415 Volt Input Voltage, 50/60 Hz Input Frequency, 22 kW Power Output, 3 Phase, RFID, 4G Wireless Technology, Type 2 Electric Vehicle Connector, 2 kg Weight, TAC-W22-T-R-C-0
Key Specifications
| Barcode (EAN-13) |
8719874450911
|
|---|---|
| SKU |
ABB6AGC082153
|
| Brand |
ABB
|
| Product Type |
AC Electric Vehicle Charger
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 25175000 |
| UOM | EA |
| Vendor Product | 6AGC082153 |
| Certifications | MID certification |
| Connector Type | Type 2 |
| Depth | 40 cm |
| Height | 20 cm |
| IK Rating | IK08 |
| Input Current | 32 Amp |
| Input Voltage | 380-415 Volt |
| Input Frequency | 50/60 Hz |
| IP Rating | IP54 |
| Item Weight | 3.5 kg |
| Phase | 3 Phase |
| Please Note | Type 2 TAC-W22-S-R-C-0 |
| Power Output | 22 kW |
| Standards | EN 61851-1 EN 61851-23 EN 61000-6-2 EN 61000-6-3 EN 301 908-2 IEC 60721-3-2 IE23 |
| Width | 26 cm |
