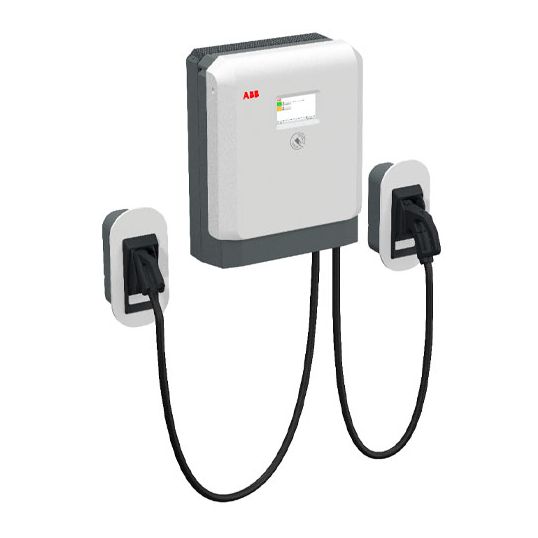

ABB DC Charger 3 Phase 22.5kW For Electric Vehicles CCS2/CHAdeMO 3.5m
Loading...
Description
DC Charger Electric Vehicle, 400 Volt AC +/-10 % Input Voltage, 50/60 Hz Input Frequency, 22.5 kW Continuous/24 kW Peak Power Output, 3 Phase, Cellular connection, 3G / 4G, 2 port RJ45, Ethernet Communication Port, CHAdeMo/CCS2 Connector, 3.5 m Cord Length, EMC Class B Standards, 60 kg Weight, TWB CE 24 CJ 0-7M-0-0
Key Specifications
| SKU |
ABB6AGC077814
|
|---|---|
| Brand |
ABB
|
| Product Type |
AC/DC Electric Vehicle Charger
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 25175000 |
| UOM | EA |
| Vendor Product | 6AGC077814 |
| Communication Port | Cellular connection/3G/4G/2 port RJ45/Ethernet |
| Connector Type | CHAdeMo/CCS2 |
| Cord Length | 3.5 mtr |
| Input Voltage | 400 Volt |
| Input Frequency | 50/60 Hz |
| Item Weight | 60 kg |
| Phase | 3 Phase |
| Please Note | TWB CE 24 CJ 0-7M-0-0 |
| Power Output | 22.5 kW Continuous/24 kW Peak |
| Standards | EMC Class B |
