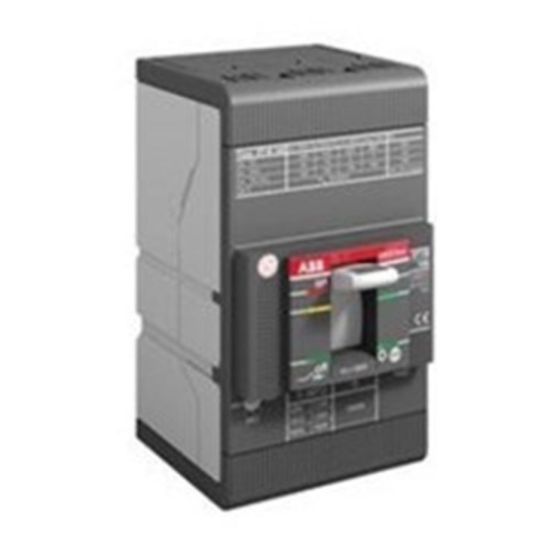

ABB Moulded Case Circuit Breaker 125A 36kA 3P 690VAC/500VDC 87.5-125A Thermal Magnetic Trip
Loading...
Description
Moulded Case Circuit Breaker, 690 Volt AC/500 Volt DC, 125 Amp, 50/60 Hz, 36 kA Interrupt Capacity, 3 Pole, 87.5-125 Amp Thermal Setting, 125-1250 Amp Magnetic Setting, Thermal Magnetic Trip, 130mm Height x 76.2mm Width x 70mm Depth
Key Specifications
| Barcode (EAN-13) |
8015644013110
|
|---|---|
| SKU |
ABB1SDA067417R1
|
| Brand |
ABB
|
| Product Type |
MCCBs
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | 1SDA067417R1 |
| Current | 125 Amp |
| Depth | 70mm |
| Frequency | 50/60 Hz |
| Height | 130mm |
| Interrupt Capacity | 36 kA |
| Magnetic Setting | 125-1250 Amp |
| Number Of Poles | 3 Pole |
| Thermal Setting | 87.5-125 Amp |
| Trip Type | Thermal Magnetic |
| Voltage | 690 Volt AC/500 Volt DC |
| Width | 76.2mm |
